Sterownik RAMPS 1.4 RepRap sterownik drukarka 3D

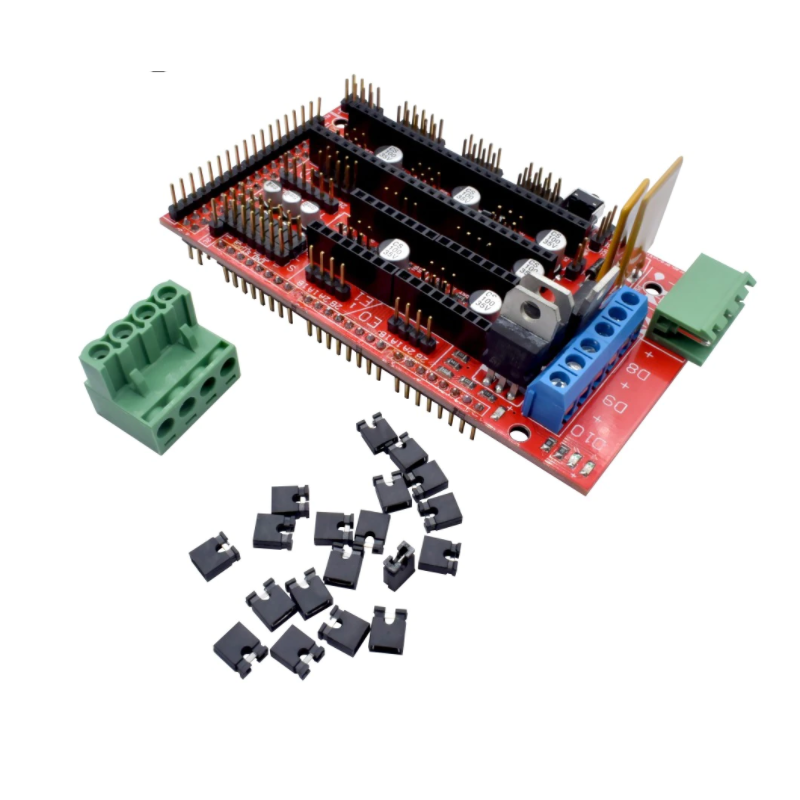

RAMPS 1.4 RepRap 3D Printer Electronics Controller for Arduino Prusa i3 Mendel

The RAMPS 1.4 board to fits the entire electronics needed for a RepRap in one small package for low cost. RAMPS interfaces an Arduino Mega with the powerful Arduino MEGA platform with plenty room for expansion. A number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack.

Specifications:

• It has right-angle coordinate robot and provisions of extruder.
• Extended to the 2 control and other accessories.
• The 3 heater / fan output and 3 thermistor circuit MOSFET.
• Fusion 5A additional safety and protection
• Heating bed control 11A fuse additional
• For 5 Pololu stepper drive plate
• Pololu plate dynatron, so they can be easily replaced or removed for future design.
• The 8.I2C and SPI pins left for future expansion.
• Of all MOSFET hooked into PWM pin is universal.
• Servo type connector for connecting to a terminal block, a motor and a light emitting diode. These connectors gold-plated, rated current is 3A, very compact.
• The 11.SD card add – is now available from Kliment – Sdramps
• 12.LED indicates the heater output
• The 13 option 2 motors are connected to the Z Prusa Mendel

• Brand new and high quality.
• Fully assembled & tested, no soldering required.
• It is designed to fit the entire electronics needed for a RepRap in one small package for low cost.
• The modular design includes plug in stepper drivers and extruder control electronics on an Arduino MEGA shield for easy service, part replacement, upgrade-ability and expansion.
• A number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack.
• Size: 11.5cm x 6cm / approx. 4.5in x 2.4in.
